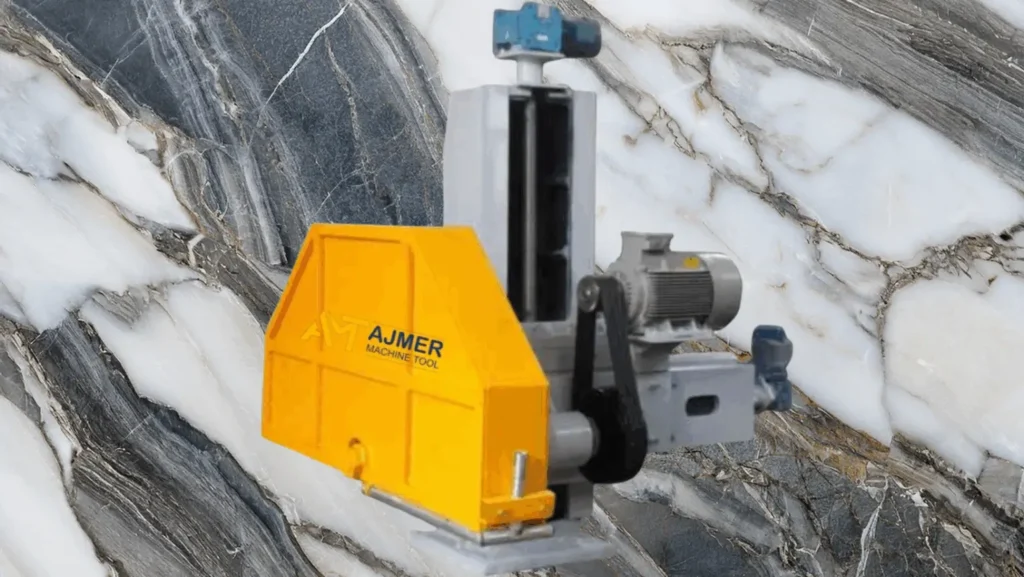

Single Pillar Block Cutter Machine
Product Description

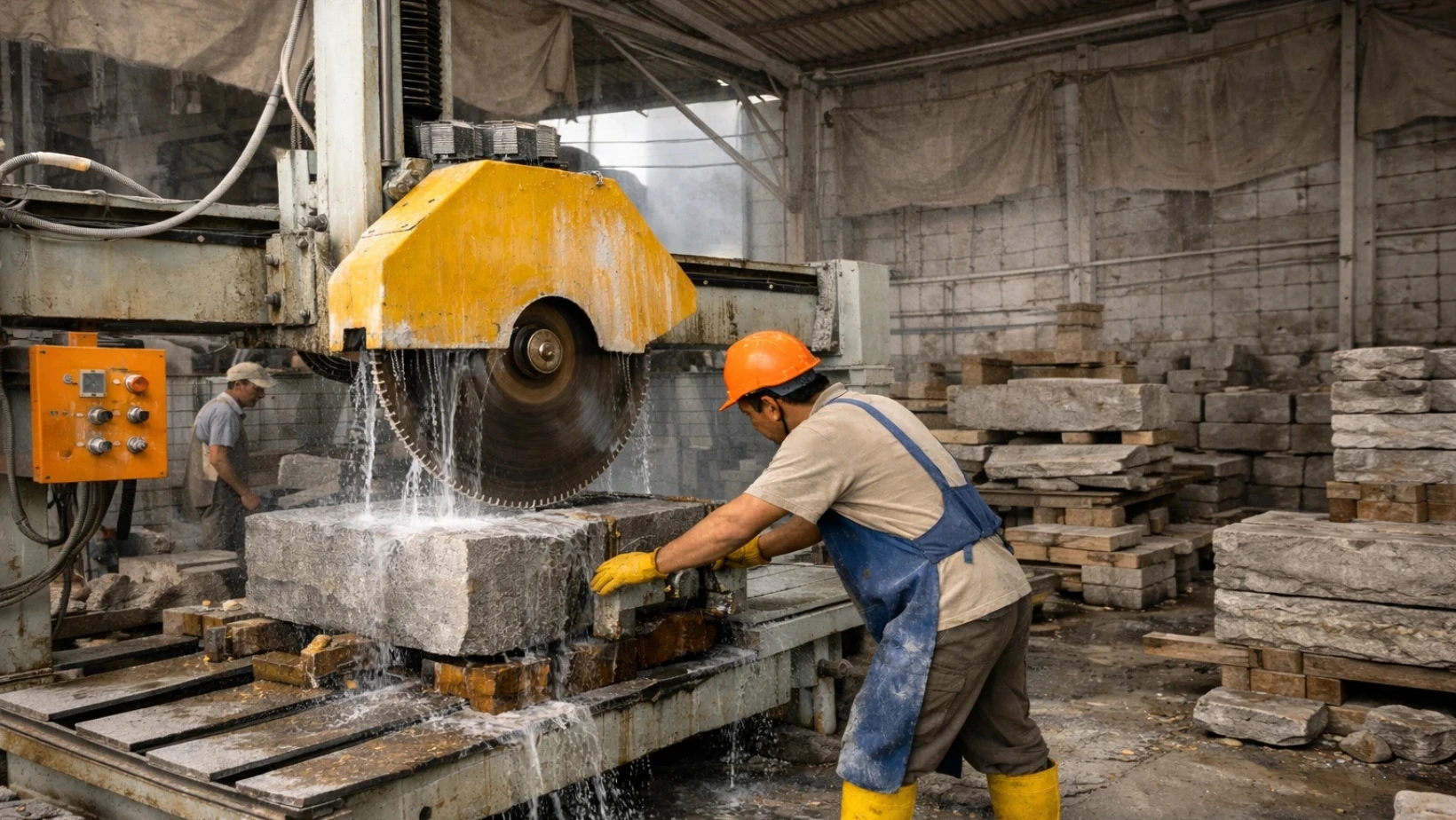

Single pillar stone cutting machine is used to cut large blocks of stone into thin slabs or tiles. It has large diameter cutting wheel which can cut block of suitable height. The cutter blade is powered by required amount of hp motor. The cutter housing is bolted on cross slide and the cross slide moves up down in C.I pillar. There is individual gear motor for pillar and cross slide which helps the cutting blade to move up and down and back and forth. It has MS fabricated trolley on which stone is placed. The cutter machine has auto panel or PLC panel which controls the cutting blade movement according to cutting.
Technical Specification
The machine applies to 45°90°cutting for PVC profiles. It adopts pneumatic drive and linear guide feeding, so it has the characteristics of high accuracy. The machine Parts are made of solid materials, so it has features of high accuracy efficiency and wide cutting range.
Blade | 1.2 Mtr./48" | 1.6 Mtr./48" | 1.8 Mtr./72" | 2.0 Mtr./ 80" |
---|---|---|---|---|
Pillar Length | 6' | 6' | 7.5' | 8.5' |
Cross Slide Length | 6' | 7' | 7.5' | 8' |
Main Motor | 20 HP | 25 HP | 25 HP | 30 HP |
Horizontal Feed Motor | 1 HP | 1 HP | 2 HP | 2 HP |
Vertical Feed Motor | 1 HP | 2 HP | 2 HP | 2 HP |
Trolley Size (mm) | 8' x 4' | 8' X 4' | 9' X 5' | 10' X 5' |
Vertical Stone Cutting | 500 mm | 650 mm | 750 mm | 850 mm |
Stone Cutting Width | 750 mm | 750 mm | 1000 mm | 1000 mm |
Stone Cutting Length | 2750 mm | 3350 mm | 3350 mm | 4000 mm |
