Mono Dresser Machine in Ajmer
The Mono Dresser Machine is a heavy-duty stone tool dressing machine designed for precise block dressing, squaring, and face cutting of marble and granite blocks. As an experienced mono dresser machine manufacturer, Ajmer Machine offers machines built with rigid structure, vibration-free operation, and consistent cutting performance.
This diamond tool dresser machine is engineered for continuous industrial use where accuracy, stability, and controlled wire motion are critical for stone processing operations.

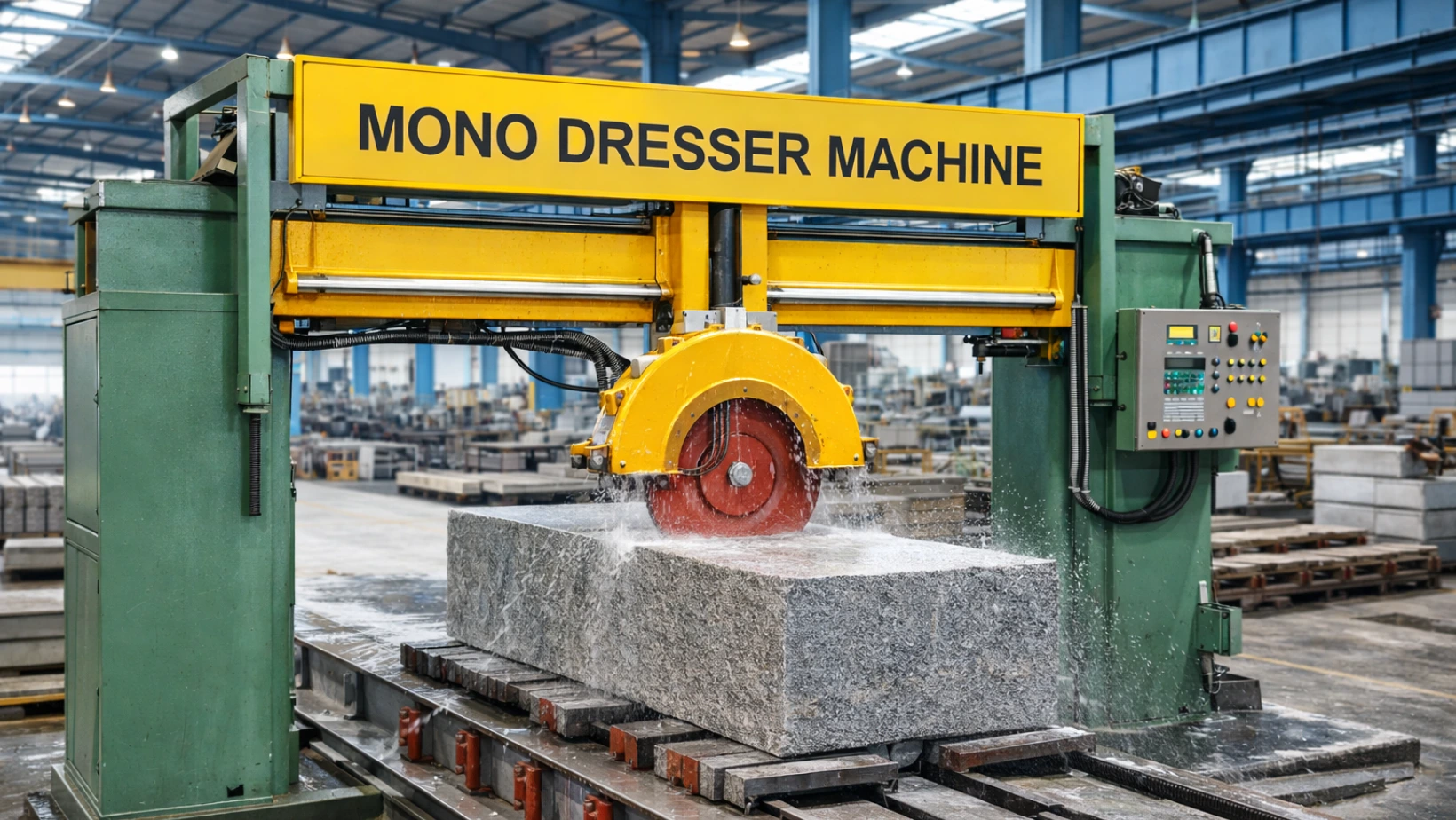

Mono Dresser Machine
Product Description:
Machine Structure is made with Heat Treated MIG welded steel, ensuring the required stiffness for avoiding vibration at the time of cutting the stone. It has two vertical columns and are connected to steel fabricated Beam. Two opposite carts containing the components for the Wire Motion slide vertically along the Machined columns by means of Lead Screw mechanism. Thus moving the wire up and down The wire is rotated by a Driving Fly Wheel with a Diameter of 1200 mm with A/C Drive controlled asynchronous motor that optimizes the wire linear speed according to the Hardness of the Stone.
Technical Specification
| Main Motor Power | 30 HP Squirrel Cage |
| Working Lower Speed | 0 to 2000 mm/hr. |
| Speed Cycles | 160 per minutes |
| Feed Motor | 3 HP (AC DRIVE) |
| Strokes Of Blades | 400 mm |
| Length Of Blade | As per requirement (4200 mm) |
| Fast up and down motor | 3 HP Squirrel Cage |
| Water Consumption | 8 Ltr/Min |
| Down Feed | 1 Mtr and above in marble |
| Maximum Useful cut size | 3800 x 2400 mm |
| Size of saw car | 12 x 10 |
| Power Of Hyd Power Pack | 2 HP |
| Rail Line 75 lbs | 40 X 40 = 80 Fit |
Key Features of Mono Dresser Machine
Features Mono Dresser Machine
Rigid, vibration-free machine structure
Optimized wire speed based on stone hardness
Heavy-duty flywheel and AC drive system
Smooth vertical wire motion with lead screw mechanism
Low water consumption and efficient cutting
Designed for long service life and industrial use
Functions of Auto Chokhat Liner Mahine
Mono dresser machine dresses stone blocks for exact cutting.
Common functions include:
Dressing and squaring irregular stone blocks
Preparing blocks for slab cutting and processing
Achieving smooth and uniform surface finishing
Maintaining cutting precision for continuous production
Supporting heavy-duty stone processing operations
Applications of Mono Dresser Machine
Marble and granite block dressing
Stone block squaring and face dressing
Diamond wire stone cutting operations
Tool dressing for stone processing units
Industrial slab and block preparation
This stone tool dressing machine is suitable for stone factories requiring reliable performance and uniform cutting results.
Why Choose Ajmer Machine as Mono Dresser Machine Manufacturer?
- Manufacturer specialized in stone machinery
- Machines built for Indian stone processing conditions
- Consistent cutting accuracy and durability
- Custom blade length and configuration support
- Reliable after-sales and technical assistance
If you are looking for a mono dresser machine manufacturer delivering performance-driven machines, Ajmer Machine provides dependable solutions for stone industries.
FAQs – Mono Dresser Machine
A Mono Dresser Machine is used for dressing, squaring, and face cutting of marble and granite blocks. It ensures smooth surfaces and accurate block preparation.
Yes, Ajmer Machine manufactures mono dresser machines for stone processing industries. The machines are designed for durability and continuous industrial operation.
This stone tool dressing machine is suitable for marble, granite, and other natural stone blocks. It works efficiently with diamond wire cutting tools.
The machine uses an AC drive-controlled motor to optimize wire speed automatically. This adjustment depends on the hardness of the stone being processed.
Yes, blade length, cutting size, and motor configuration can be customized. Customization is done based on production requirements and site conditions.
